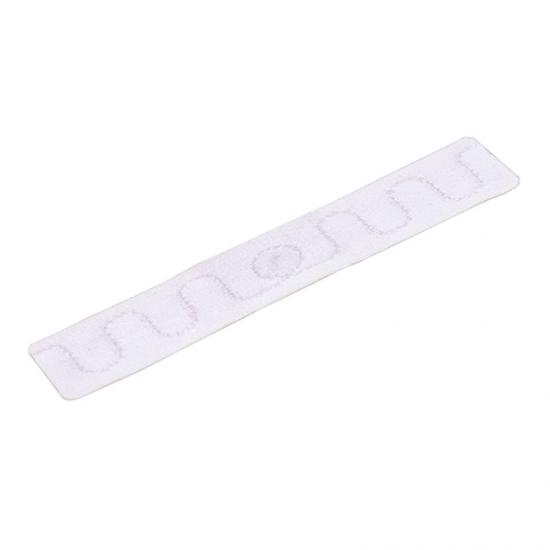

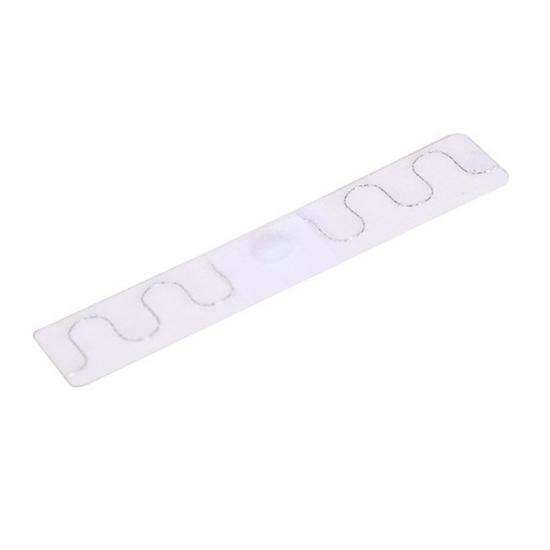

Ucode7M UHF RFID Laundry Tag
Ucode7M UHF RFID Laundry Tag Ucode7M UHF RFID Laundry Tag

Long Distance Textil Ucode7M UHF RFID Laundry Tag

  1. Ucode7M Long Distance UHF Textile Laundry Tag, with more than 200 industrial washing cycle times,  stable and reliable RF performace.
  2. More than 200 wash cycles.
  3. Both material and design have been tested for reliability.
  4. 100% function tested.
  5. Factory price

  • Item no.:

    DFFZB006(1)

  • Payment:

    T/T,Western Union, PayPal, MoneyGram

  • Product origin:

    China

  • Color:

    White

  • MOQ:

    500PCS

  • Shipping port:

    Shenzhen

  • Lead Time:

    1 day in stock
Inquiry now
  • Product Details
  • Main Features Of Our UHF Woven/Textile Laundry Tags：
  1. Textile or Off Metal Applications.
  2. Frequency options: FCC / ETSI / CHN.
  3. More than 200 wash cycles, Both material and design have been tested for reliability,100% function tested.
  4. Can customize size for customers, Soft material, Smaller module inside the tag, Can stick under 60 bar pressure.
  5. It can be fixed by sewing or heat sealing.
  6. Can customize size for customers.
  7. High temperature resistant material.
  8. Can be lasered with barcode.
  9. Resistant to waterproof.
  • Assembly method: heat sealing or sewing.
RFID Hotel Laundry Tag
UHF RFID Laundry Tag For Tracking
Technology Details：
Item
 		Washable Textile Laundry Rfid Tag
Compliance
EPC Class1 Gen2; ISO18000-6C
Frequency
902-928MHz , 865~868MHz (Can customize frequency)
Chip
N X P Ucode7M
Memory
EPC 96bits
Read/write
Yes (EPC)
Power Supply
Passive
Data Storage
20 years
Lifetime

200 wash cycles or 2 years from shipping date
(whichever comes first)
Read distance

Up to 5.5 meters (ERP=2W)

Upto 2 meters( With ATIDAT880handheldreader)

Basic Details：
Material
Textile

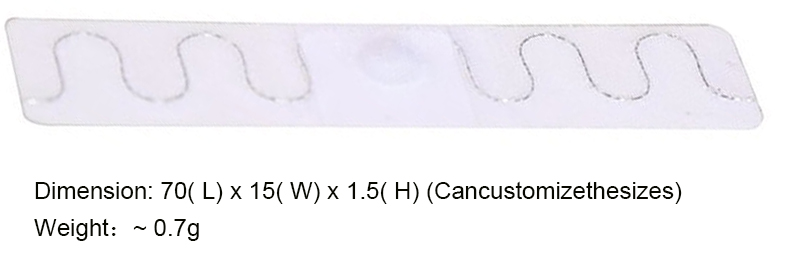

Dimension
70( L) x 15( W) x 1.5( H) (Cancustomizethesizes)
Weight
~ 0.7g
Color
White
Laundry RFID Clothing Tag Factory
Storage Temperature
-40℃~ +85 ℃
Operating Temperature
  1. Washing: 90℃(194οF), 15 minutes, 200 cysle
  2. Pre-drying in Tumbler: 180℃(320οF), 30minutes
  3. Ironer: 180℃(356οF), 10 seconds, 200 cycles
  4. Sterilization Process: 135℃(275οF), 20 minutes
Mechanical Resistance
Up to 60 bars
Delivery format
Single
Installation Method

7015-7M :Thread installation

7015-7M-H: 215℃@12-15 seconds heat sealing or thread installation

Chemicals Normal
common chemicals in the washing processes
RoHS
Compatible
Polarization
Liner
Package
Antistatic bag and carton
Laundry RFID Clothing Tag Manufacturer



Application：


  • Industrial washing.
  • Management of  uniforms.
  • Medical apparel management.
  • Military clothing management.
  • Personnel patrol management.
RFID UHF Laundry Tag Sealed
