High Temperature Fabric Textile Washable Monza R6 UHF RFID Laundry Tag
The laundry uhf rfid tags are designed to endure the hotel and institutional laundry processes providing durability and suitability for washing, drying, dry cleaning and ironing. It is suitable for many different applications such as laundry application, logistics, anti-counterfeiting, access control, industrial transponder, supply chain management control, inventory control, asset tracking, process control, electronic ticketing and manufacturing system.
Products Description：
|
Specification |
Fabric Textile Washable UHF RFID laundry tag |
|
Frequency |
860-960MHz |
| Chip |
Fixed reader over 4m handheld reader over 2 UHF (H3, MONZA R6/ R6-P and other UHF transponder)m |
|
Protocol |
ISO/IEC 18000-6C & EPC global Class 1 Gen 2 |
|
Reading distance |
(Distance varying upon the tested Reader) |
|
Material |
Textile |
|
Size |
86 x 16 mm & 70 x 15 x 1.5 mm & 75*11*1.5 mm or Cusomized size |
| Thickness | COB+waterproof cloth+metal fiber line |
|
Packing material |
1. Washing: 90℃(194οF), 15 minutes, 200 cysle
2. Pre-drying in Tumbler: 180℃(320οF), 30minutes |
|
Operating temperature |
135℃(275οF), 20 minutes Sterilization Process: 135℃(275οF), 20 minutes |
|
Storage Temperature |
-40℃~ +85 ℃ |
|
Working time |
200 wash cycles or 2 years from shipping date (whichever comes first) |
| Weight |
About 0.7g/piece, 1.5kgs/bag, 6kgs / carton |
|
Package |
200pcs/bag, 5bags/inner box, 7 inner box/ carton |

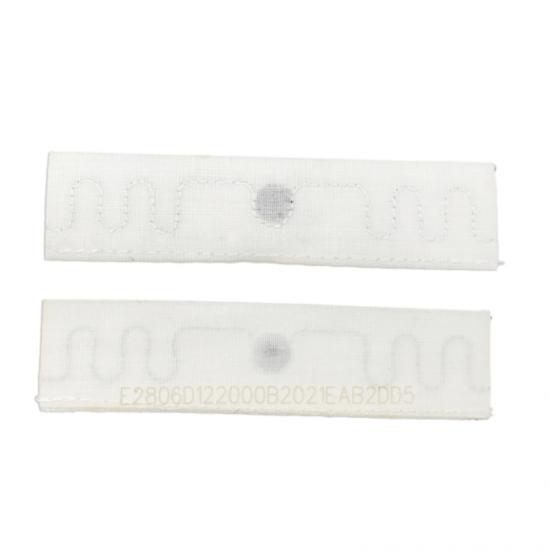

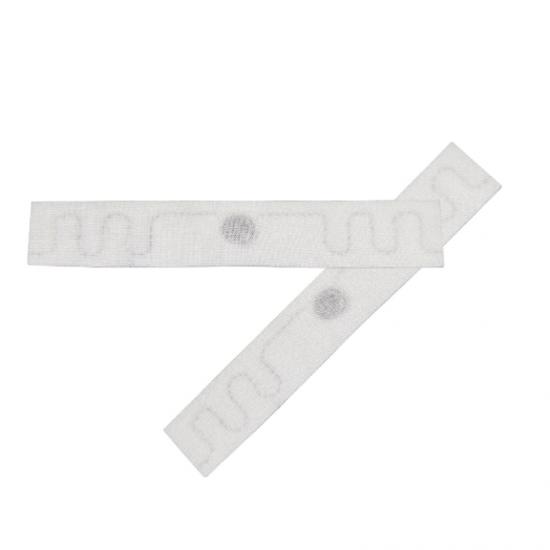

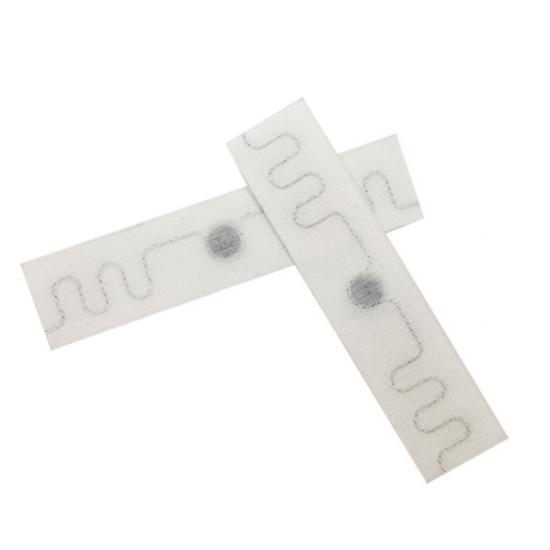

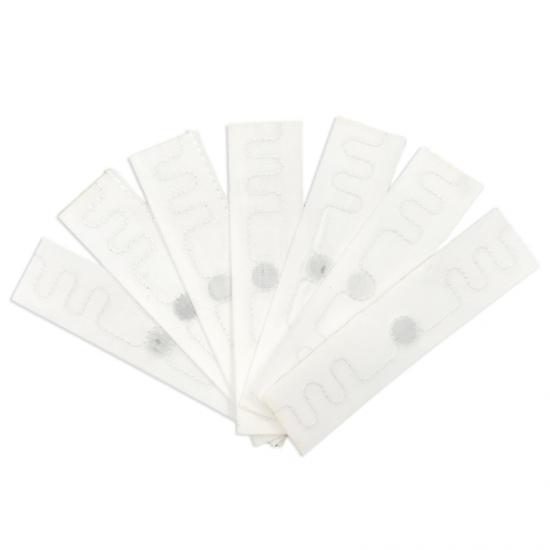

Products Display：
Two kinds of different methods of assembly:
-Sewing (Thread installation)
-Heat sealing or sewing
Textile RFID UHF Laundry Tag Key Features:
-Customized size.
-Soft material.
-More than 200 cycle washing times.
-Smaller module inside the tag.
-Can stick under 60 bar pressure.
-Anti-collision, high temperature, withstand pressure.
-Excellent performance and a cost-effective solution for industrial laundering applications.
Applications:
Industry and medical laundry;
Work clothes, school uniform management;
Medical clothing management;
The army bedding and clothing management;
Hotel Cloth management.
Packing :
5psc in one opp bags , 500bags in one cartons.
