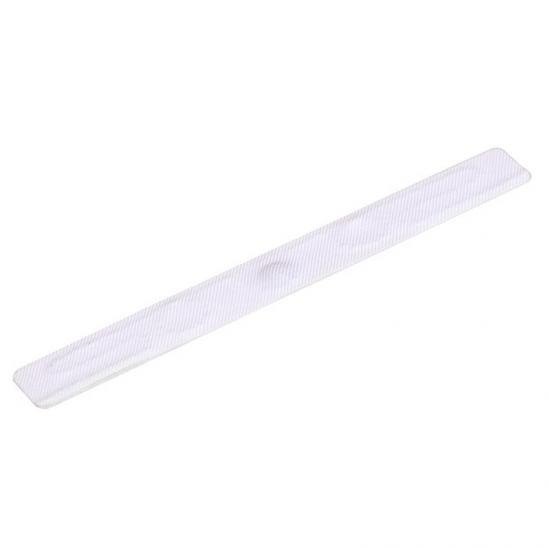

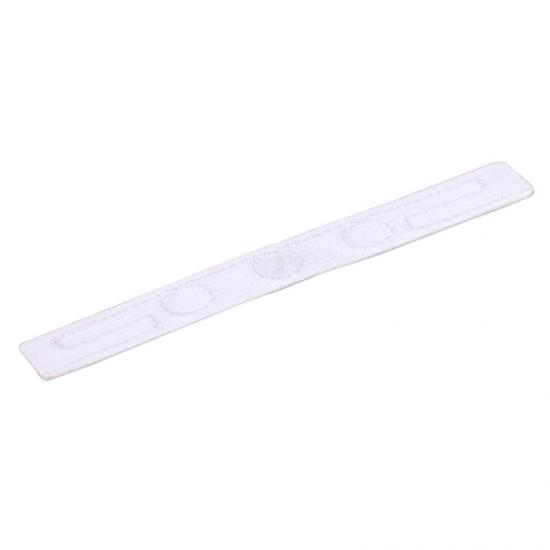

- Item:UHF Washable RFID Tags
- Frequency options: FCC / ETSI / CHN.
- More than 200 wash cycles, Both material and design have been tested for reliability,100% function tested.
- Can customize size for customers, Soft material, Smaller module inside the tag, Can stick under 60 bar pressure.

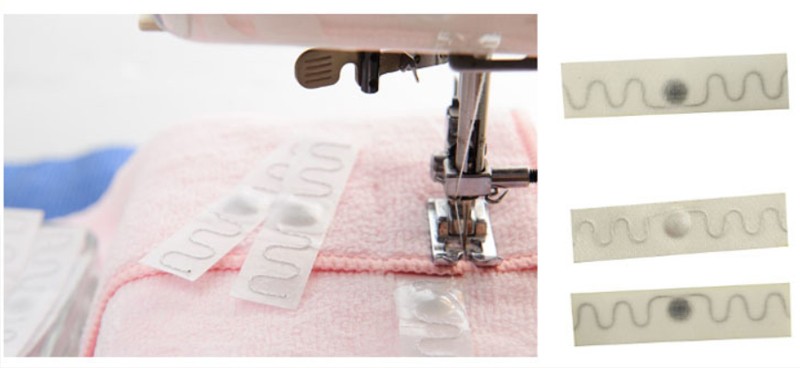

- It can be fixed by sewing.
|
|
- What's Advantage Of Textile RFID UHF Laundry Tag:
- More than 200 wash cycles.
- Both material and design have been tested for reliability.
- 100% function tested before shipping.
- Factory price.
Technology Details: |
|
Compliance |
EPC Class1 Gen2, ISO18000-6C |
Chip |
Impinj R6P |
Frequency |
865~868MHz, or 902~928MHz |
Memory |
EPC 96bits,User 32bits |
Read/write |
Yes |
Data Storage |
20 years |
Lifetime |
200 wash cycles or 2 years from shipping date (whichever comes first) |
Power Supply |
Passive |
Read distance |
Up to 5.5 meters (ERP=2W) Up to 2 meters ( With ATID AT880 handheld reader) |
Product Details: |
|
Material |
Textile |

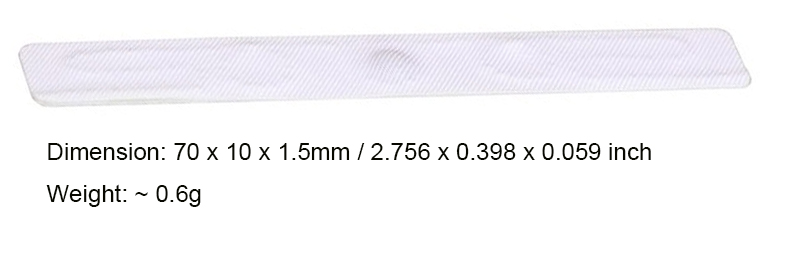

Dimension |
70 x 10 x 1.5mm / 2.756 x 0.398 x 0.059 inch |
Weight |
~ 0.6g |
Color |
White |
|
|
Storage Temperature |
-40℃~ +85 ℃ |
Operating Temperature |
|
Mechanical Resistance |
Up to 60 bars |
Delivery format |
Single |
Installation Method |
Thread installation |
RoHS |
Compatible |
Chemicals |
Normal common chemicals in the washing processes |
Polarization |
Liner |
Package |
Antistatic bag and carton |
|

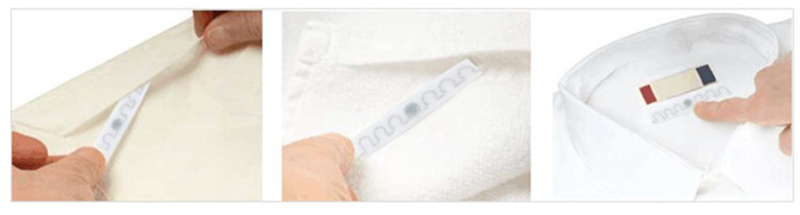

This UHF Textile RFID Laundry Tag is widely used for Textile or Off Metal applications. Such as:
- Industrial washing.
- Management of uniforms.
- Medical apparel management.
- Military clothing management.
- Personnel patrol management.
