• RFID Coin Card

---

• What's An RFID Coin Card？

A RFID Coin Card with a PVC laminated encapsulation chip coil, similar to a work permit card, portrait ID card, and bank card. Only the shape is different, it can be inkjet printed or offset printed silkscreen printed as well. Glossy and matte are available.

---

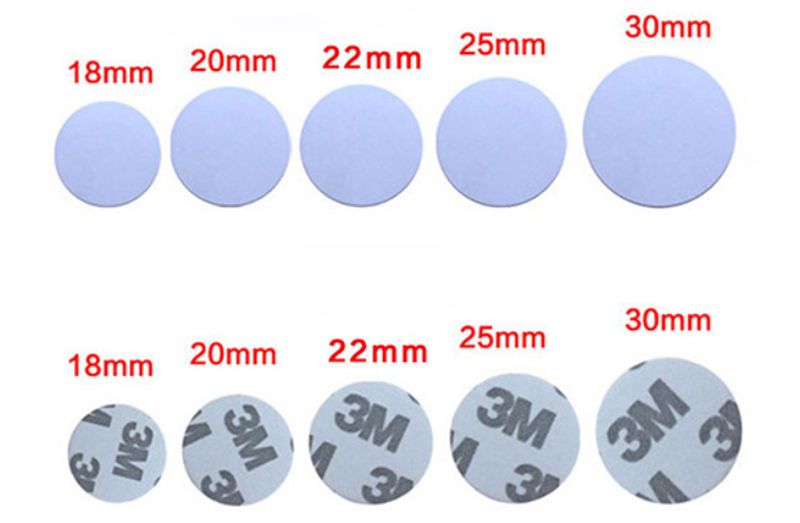

• The diameter of the coin card is 18mm/20mm/25mm/30mm etc.




• Available Chips: EM4100, TK4100, T5577, Original S50/S70, I-CODE 2, Ultralight, F08 or as your need.

• Features Of RFID Round Tag Cards：

1. Exquisite and compact, easy to carry, strong anti-interference ability,  shatter-resistant, waterproof and anti-corrosion
2. Recognition stability, strong penetrating power, and unique global identification

• Application:

It is suitable for access control, bus, parking lot, highway toll, identity authentication, attendance management, tickets, enterprise/campus all-in-one card payment, product identification, etc.

Basic Parameters
Type	Passive RFID tag
Frequency	125KHz, 13.56MHz
RFID Standards	ISO14443A, ISO15693

Physical Parameters

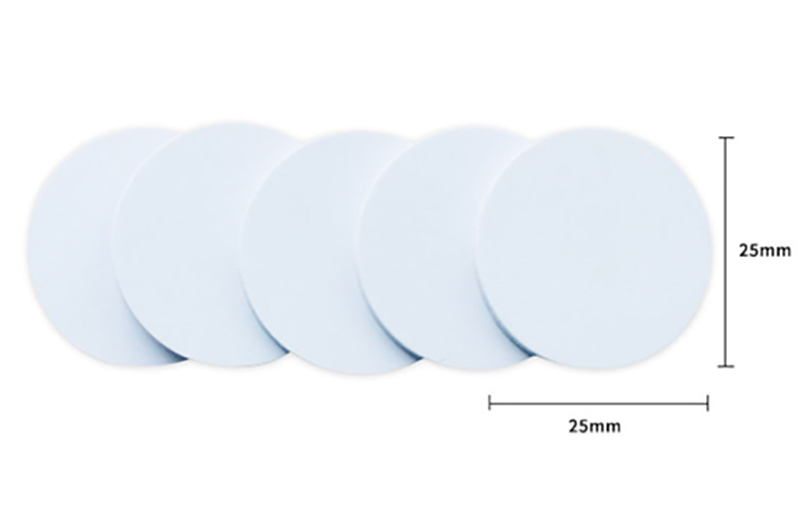

Size	Round 20mm, Round 25mm, Round 30mm or customized
Packaging materials	PET, PVC, Transparent PVC

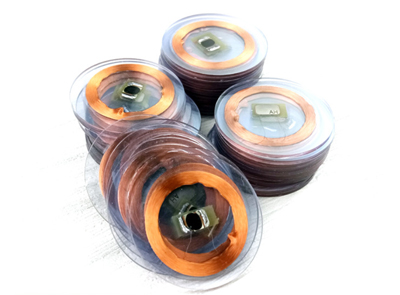

Antenna manufacturing method	Copper winding, aluminum etching
Available crafts	Silk screen printing, coding, writing data, punching, glue, etc.

Performance Parameters

EM4200, HT4168, T5577, S50/S70, Ultralight EV1/Ultralight C, NTAG213/216, I CODE SLIX, FM1108, Desfire2K/4K/8K or customized

Storage capacity	It is depend on different chip
Working mode	read and write
Data storage time	>10 years
Erasable times	100,000 times
Reading distance	0-5cm (reading distance is related to working environment and reader)
Environmental Parameters
Working temperature	(-25℃~+55℃)
Storage temperature	(-35℃~+75℃)
