- Impinj Monza R6P RFID Anti Metal Tags For Tracking
- Video Show :
- Description :

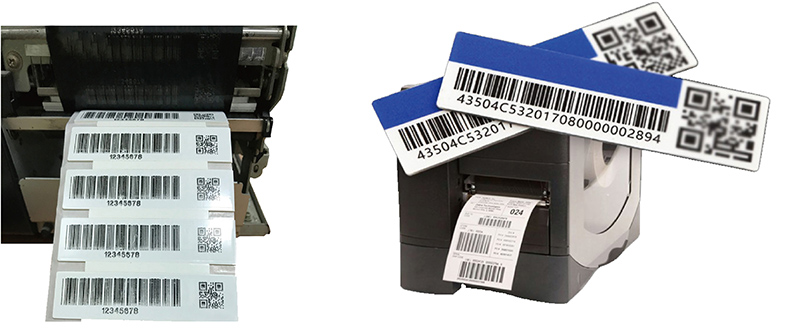

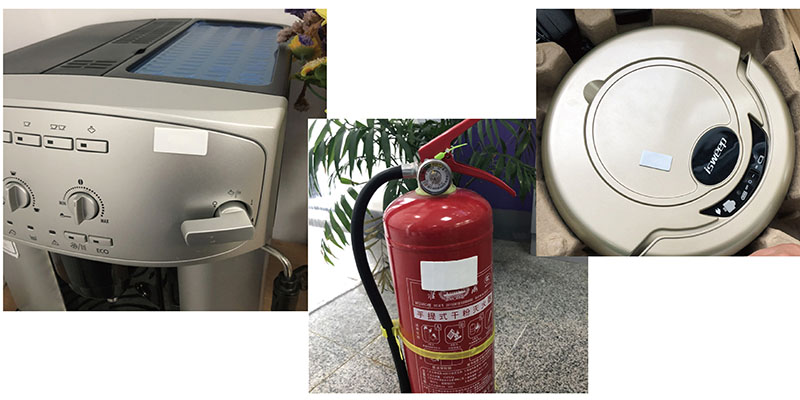

These printable RFID UHF anti metal tags are specially designed to work with Zebra ZT410 Silverline,Sato CL4NX,Printronix T4000,Postek Tx3r,etc. These flexible RFID metal tags are read at distance ranging from 6 meters to 7 meters when they are sticked on metallic assets or liquid container or any other materials, specially for irregular and uneven surface,such as steel boiler, metal container,steel pipe,etc.
They are great ideal for the application in the following :
1, Asset and tool tracking in medical devices for healthcare,
2, laptops & servers in IT (information technology),
3, industrial manufacturing, oil & gas pipelines, vehicle tracking
4, identification
5, IT asset tracking
6, Metallic office asset tracking
7, Patrol guard system
8, Asset tracking
9, Warehouse shelf
10, Other metallic container tracking
11, Equipment&device tracking
12, Automotive components tracking, etc.
Technical parameters: | |
Protocol |
EPC C1G2 (ISO18000-6C) |
Chip |
Impinj Monza R6-P |
EPC Memory |
128(96) bits |
User Memory |
32(64)bit |
Max Read Range |
865-868MHz : 70cm 902-928MHz : 60cm |
Data Storage |
> 10 years |
Re-write |
100,000 times |
Installation |
Adhesive |
Customization |
Company logo,Barcode,Numbers printing,Encoding,etc |
Physical Features: |
|
Model |
DFRK004 |
Item |
UHF Flexible On-metal Label |
Material |
PET |
Dimensions |
30*15*1.25mm |
Working Temp |
-20~+75℃ |
Survival Temp |
-40℃~+100℃ |
Other Size available |
95x22x1.25MM,65x35x1.25MM,55x15x1.25MM,30x15x1.25MM,60x25x1MM,70x30x1MM,80x40x1MM,100x40x1MM,64x6x1MM... |
Features:
1-Easy installation.
2- Indoor application
3-Logo printed, text, barcode is available on the surface.
Anti-metal hight temperature resistant
High-end Strength adhesive great adhesive

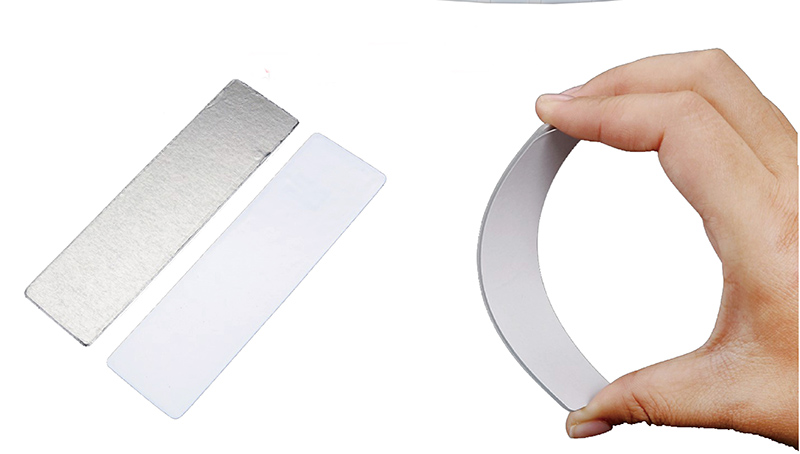

Flexible and can be stuck on metallic asset easily ,
Specially for irregular and uneven surface
Printable
Our Advantage:
Work on metallic asset
100% pass EU system testing
100% wristable testing.
Durable material and design.
Widly used by our customer and proved good performance.
