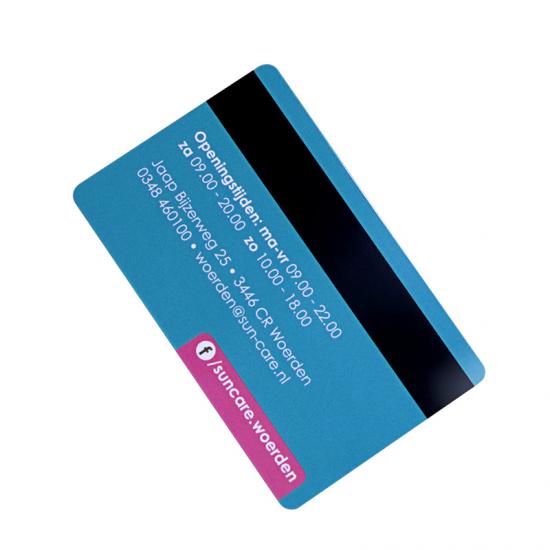

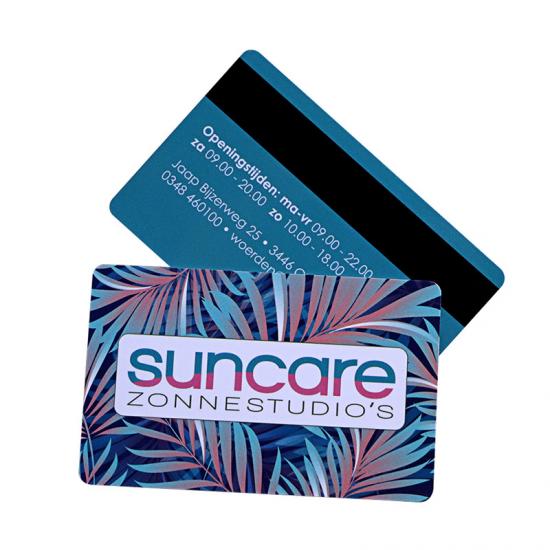

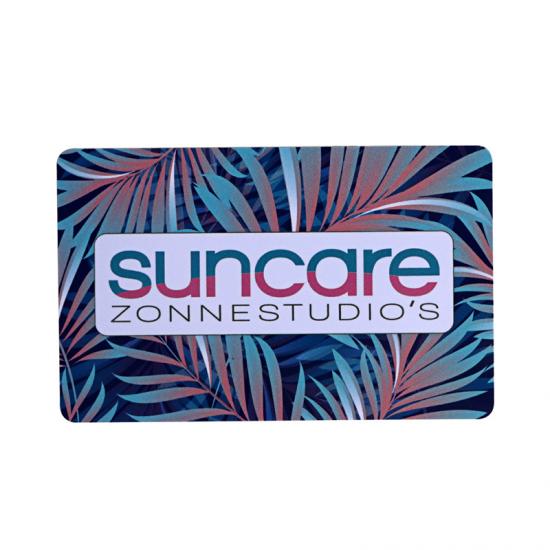

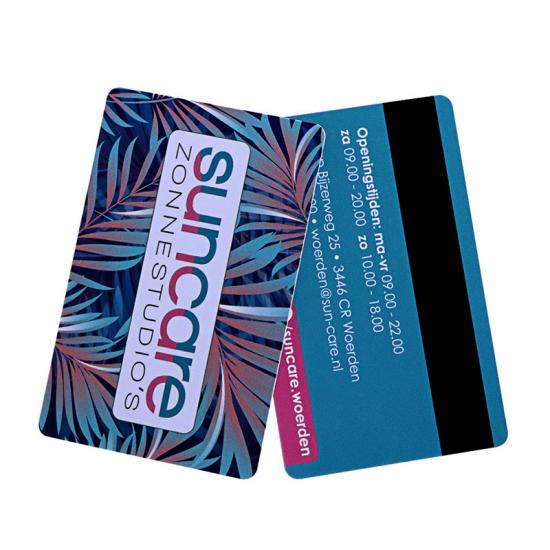

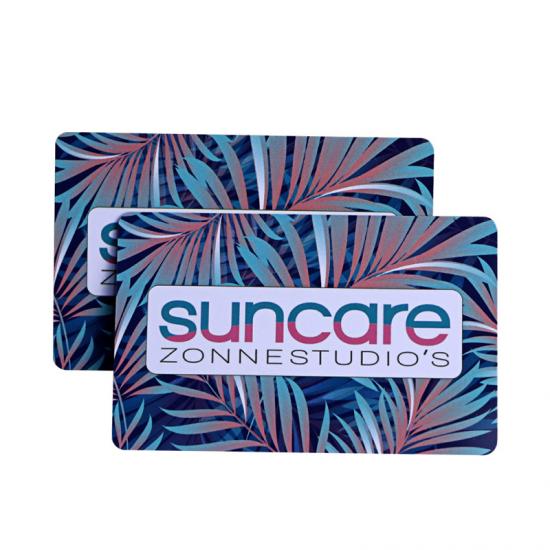

- 13.56Mhz RFID Ntag215 NFC Cards With Magstripe
- Description：
NTAG213, NTAG215 and NTAG216 have been developed by N X P Semiconductors as standard NFC tag ICs to be used in mass market applications such as retail, gaming and consumer electronics, in combination with NFC devices or NFC compliant Proximity Coupling Devices. Ntag213 NFC card is one form of packaging,
it also can be NFC tag...
NTAG21x ICs consist of a 180 (NTAG213), 540 bytes (NTAG215) or 924 bytes (NTAG216) EEPROM, RF interface and Digital Control Unit (DCU). Energy and data are transferred via an antenna consisting of a coil with a few turns which is directly connected to NTAG21x. No further external components are necessary.
- NTAG213 EEPROM: 180 bytes, organized in 45 pages of 4 byte per page.
– 34 bits used for the read-only locking mechanism
– 4 bytes available as capability container
– 144 bytes user programmable read/write memory
- Features and benefits of NFC213 Cards:
- Contactless transmission of data and supply energy
- Operating frequency of 13.56 MHz
- Data transfer of 106 kbit/s
- Data integrity of 16-bit CRC, parity, bit coding, bit counting
- Operating distance up to 100 mm (depending on various parameters as e.g. field strength and antenna geometry)
- 7-byte serial number (cascade level 2 according to ISO/IEC 14443-3)
- UID ASCII mirror for automatic serialization of NDEF messages
- Automatic NFC counter triggered at read command
- NFC counter ASCII mirror for automatic adding the NFC counter value to the NDEF message
- ECC based originality signature
- Fast read command
- True anticollision
- 50 pF input capacitance
