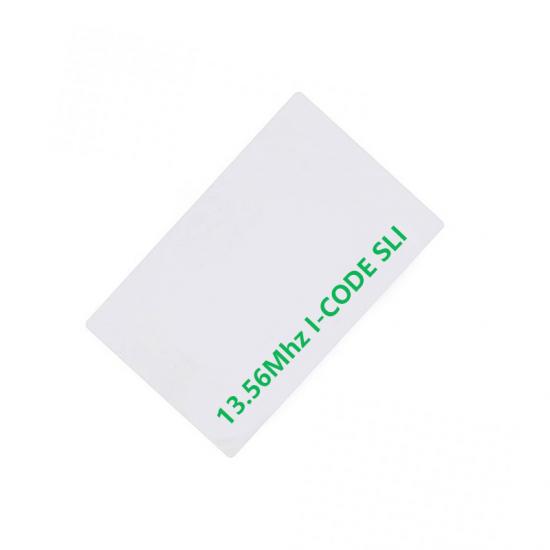

- 13.56MHz I CODE SLI RFID Conactless NFC Ticketing Cards
- Description：
I.CODE SLI RFID Contactless Card is mainly used in ticketing management as like supply chain management as well as baggageand parcel identification in airline business and mail services.The definition of the RF-interface is according to the standard ISO/IEC 15693-2 and ISO/IEC 15693-3. Working Frequency 13.56MHz. The reading distance can up to 1.5 m (gate width). No battery is needed.
 |
|
Technical Details： |
|
-Contactless (no battery needed) -Read/Write range:0-1.5m( depending on antenna geometry) -13.56MHz frequency -ICODE SLI fully compliant of ISO/IEC 15693 Functionality |
|
* Fast data transfer: up to 53 kbit/s * High data integrity: 16-bit CRC, framing * True anti-collision * Password protected Electronic Article Surveillance (EAS) incl. application selection * Additional fast anti-collision read * Data Storage Format Identifier (DSFID) * 32-bit Privacy password * 32-bit Destroy password |
|
-ICODE SLI EPC Functionality * Fast data transfer: up to 53 kbit/s * High data integrity: 16-bit CRC, framing |
|
Basically Details： |
|
| Item |
ICODE SLI RFID NFC Ticketing Cards |
|
Thickness |
0.84+-0.02mm |
|
Card surface |
Matt/Glossy finish |
|
Material |
PVC, PET, ABS, PET-G, Paper |
|
Card craft: |
-Punching hole -Silver/gold metallic -Barcode -Magnetic stripe: 2750oe hico ,4000oe hico , loco -Offset/silk-screen printing -UV logo -Numbering: thermal number, UV number, jet dot number, laser number -Signature panel -encoding |
|
Chip available |
-ICODE SLI-X (ICODE2) -ICODE SLI-S ... |
Application :
-Pallet & Case Tracking
-Container identification
-Asset management
-Supply chain management
