• Which Device Is Used To Read Magnetic Stripes?

---

• Description：

The magnetic card reader is a device that reads the data on the card. It can not only support the reading of the data on the card, but also the writing of the data. The card reader can realize a variety of functions such as automatic charging, card sales, card making, etc.
It is practical, fast, convenient, and highly reliable.

• Here is a one magnetic card reader for you，
• Introduction:

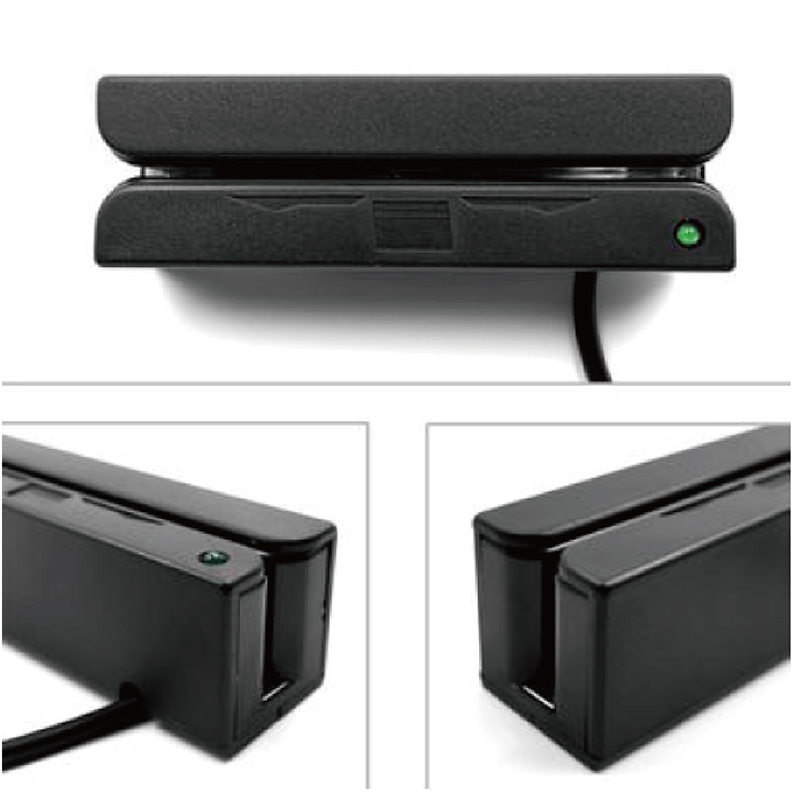

HCM123-90 is a programmable magnetic card reader, specially used for reading and transmitting magnetic card information. This product uses F2F decoding magnetic card, integrates magnetic card decoding and data transmission functions, supports two-way card swiping operations, according to different user requirements, can read the information of the first, second, and third tracks of the magnetic card, and supports reading high and low antimagnetic strips. Comply with IBM, DIN, ISO7810/12/13, ANSL/ISO technical standards, with USB HID, keyboard emulation, USB OTG or RS_232 serial port (customizable) output. Support JPOS & OPOS interface.

---

• Features
• Support interface: USB OTG, RS232 (optional)
• Disassembly function: support detachable or cover to hide
• Convenient and quick: power-on self-test, USB output without external power supply, simple operation, plug and play
• Card reading function: full three-track card reading, support two-way card swiping
• Indication function: built-in buzzer, has an LED light (green LED lights up to indicate successful card reading)
• Output function:

         programmable USB HID, keyboard emulation output,

         Customizable USB OTG or RS_232 serial port output
         RS_232 output can choose baud rate, keyboard port takes power, no external power supply is needed

• Safe and reliable: support 3DES, DUKPT encryption
• Support system: Windows XP, Windows visa, Windows7, Linux, android, etc.

---

•  Technical parameters
• Reference standard ISO 7811, AMMVA, CADMV, etc.
• Swipe speed 3 ~ 60 inches/sec
• Interface USB2.0, plug and play, optional USB OTG or RS232 interface
• Single head
• Read track 1, 2, 3 track optional
• Working temperature -20℃~60℃
• Storage temperature -20℃~60℃
• Relative humidity 90% (non-condensing)
• Service life about 500,000 times
• Dimensions 90mm (length) X 27mm (width) X 28mm (height)
• Weight 75 grams (HCM123-90U)
• Colour: Black
• Error rate is less than 0.5%
• One year warranty
