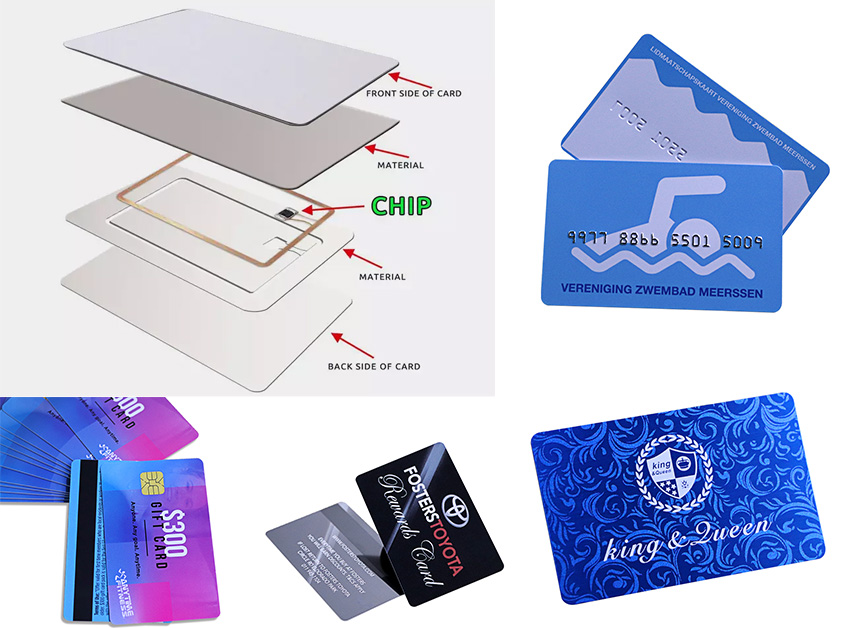

What Is RFID S 50 1K Chip Cards And Its Advantages?

---

Mf S 50 1K 13.56KHz HF requency thin card adopts Philips (N X P) original Mf IC S 50 chip, which complies with the IEC/ISO 14443A interface protocol. It has an advanced data encryption and two-way password verification system, and 16 completely independent sectors. It has extremely high stability and a wide range of applications.Such as student ic cards, prepaid cards, bus cards, payment cards for highway toll, ticketing cards etc,.

---

The Parameters of the Mf  S 50 1K chip cards:

• Chip type: Original N X P 1K IC S 50
• Storage capacity: 8Kbit, 16 partitions, two sets of passwords for each partition
• Working frequency: 13.56 MHz
• Communication speed: 106K
• Reading distance: 2.5~10cm
• Read and write time: 1~2ms
• Working temperature: -20℃~+55℃
• Erase and write life: >100,000 times
• Data preservation: >10 years
• Dimensions: ISO standard card 85.6 x 54 x 0.82mm
• Packaging materials: PVC, PET, PETG, ABS
• Packaging process: ultrasonic automatic planting line / automatic welding
• Executive standard: ISO14443A

Typical applications: enterprise/campus all-in-one card, bus stored-value card, highway toll collection, parking lot, community management, control access system management, restaurant, hotel,retail industry etc.
The chip that is fully compatible with S 50 1k is FM11RF08. The performance, use and usage of FM11RF08 chip are exactly the same as S 50 1k.
However , because the S 50 1k chip is an original imported chip from N X P  company, there will be many additional fees such as tariffs, so the price is relatively low high. FM11RF08 is produced by Fudan company in China, and with low production cost and competitive price . Therefore, FM11RF08 chips are used instead of MfS 50 1k chip in more and more RFID technology systems.
